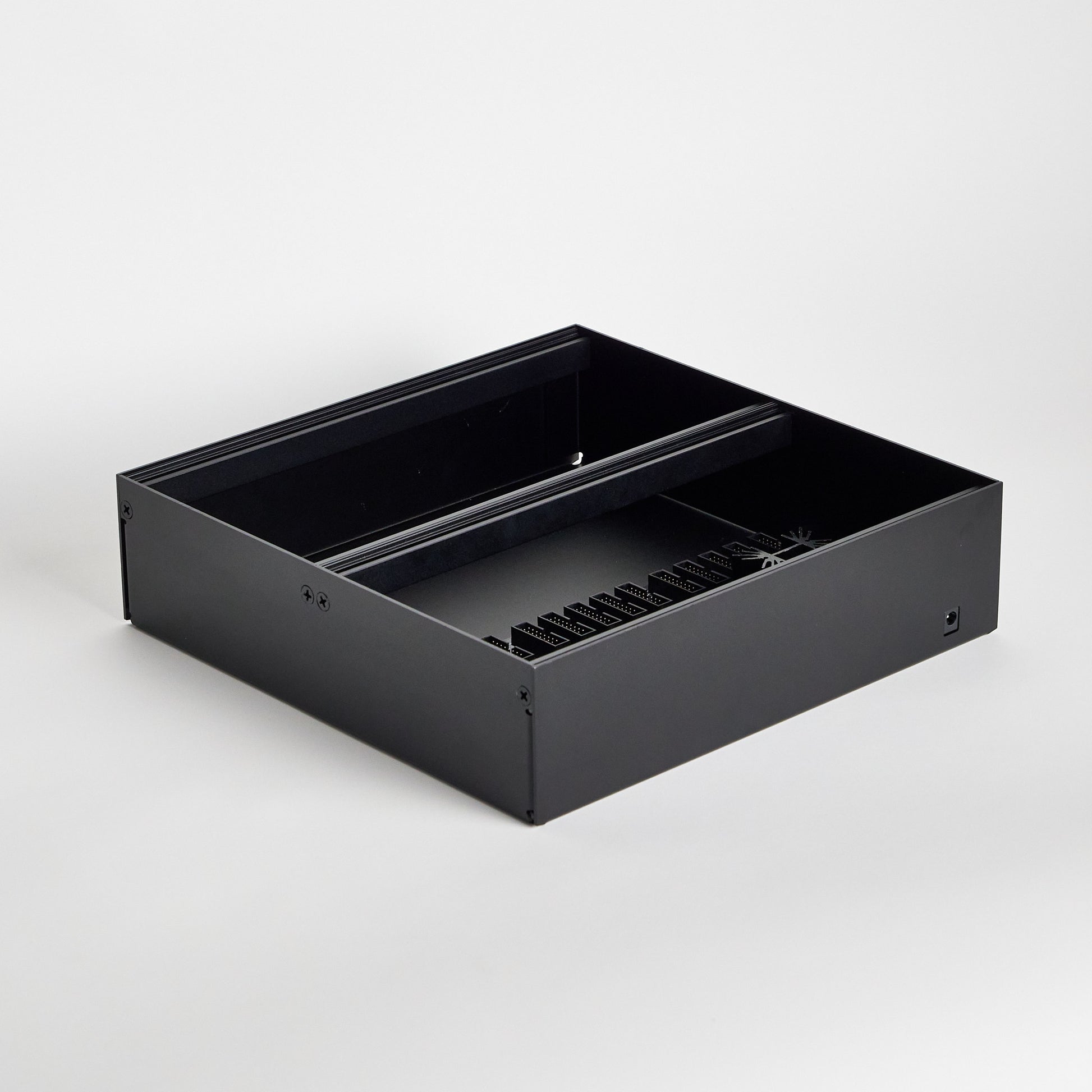

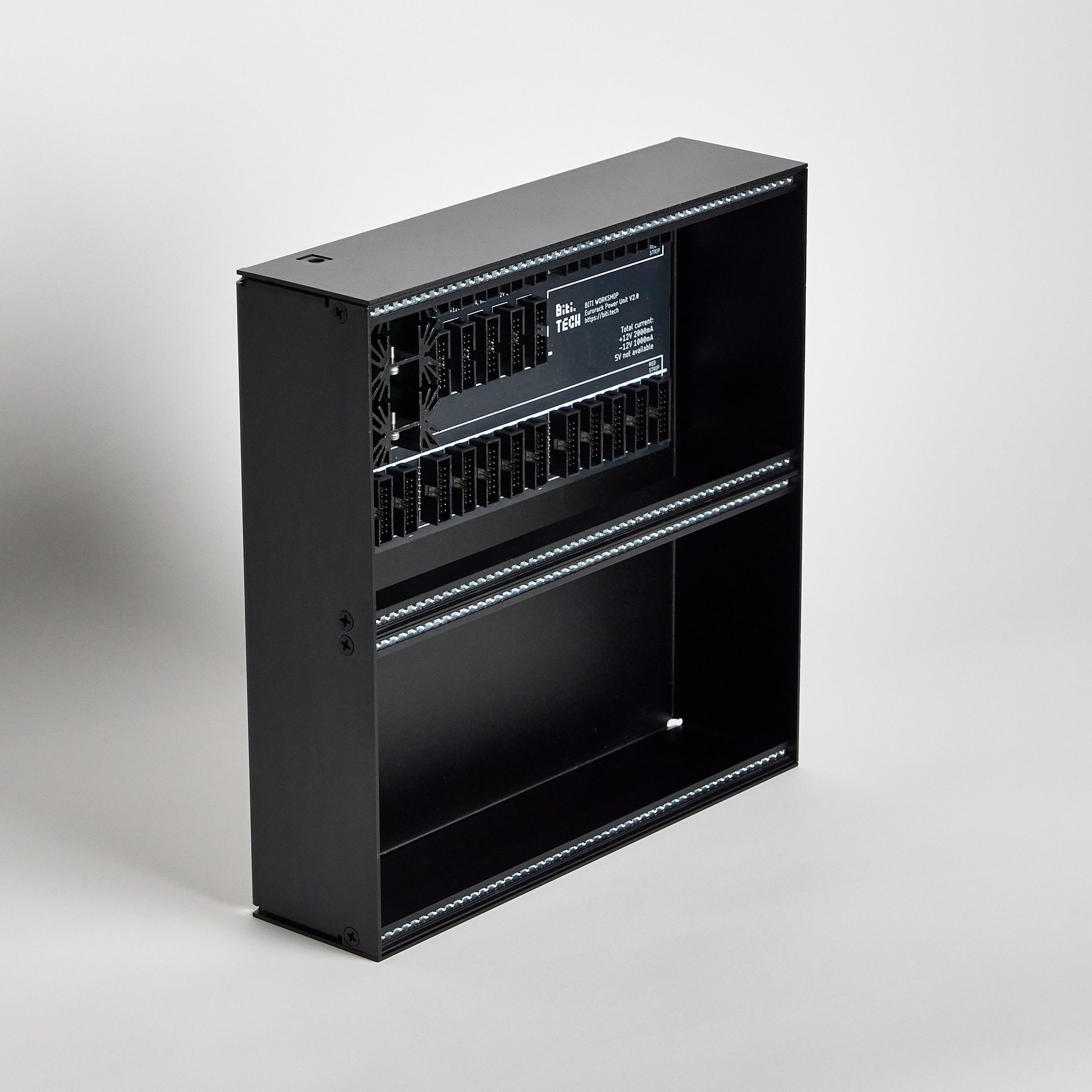

biti workshop 6U52hp powered eurorack case - Black

• Eurorack case (powered) 2row x 52hp.
• Maximum output current: +12V 2000mA / -12V 1000mA / +5V None
• Power adapter included

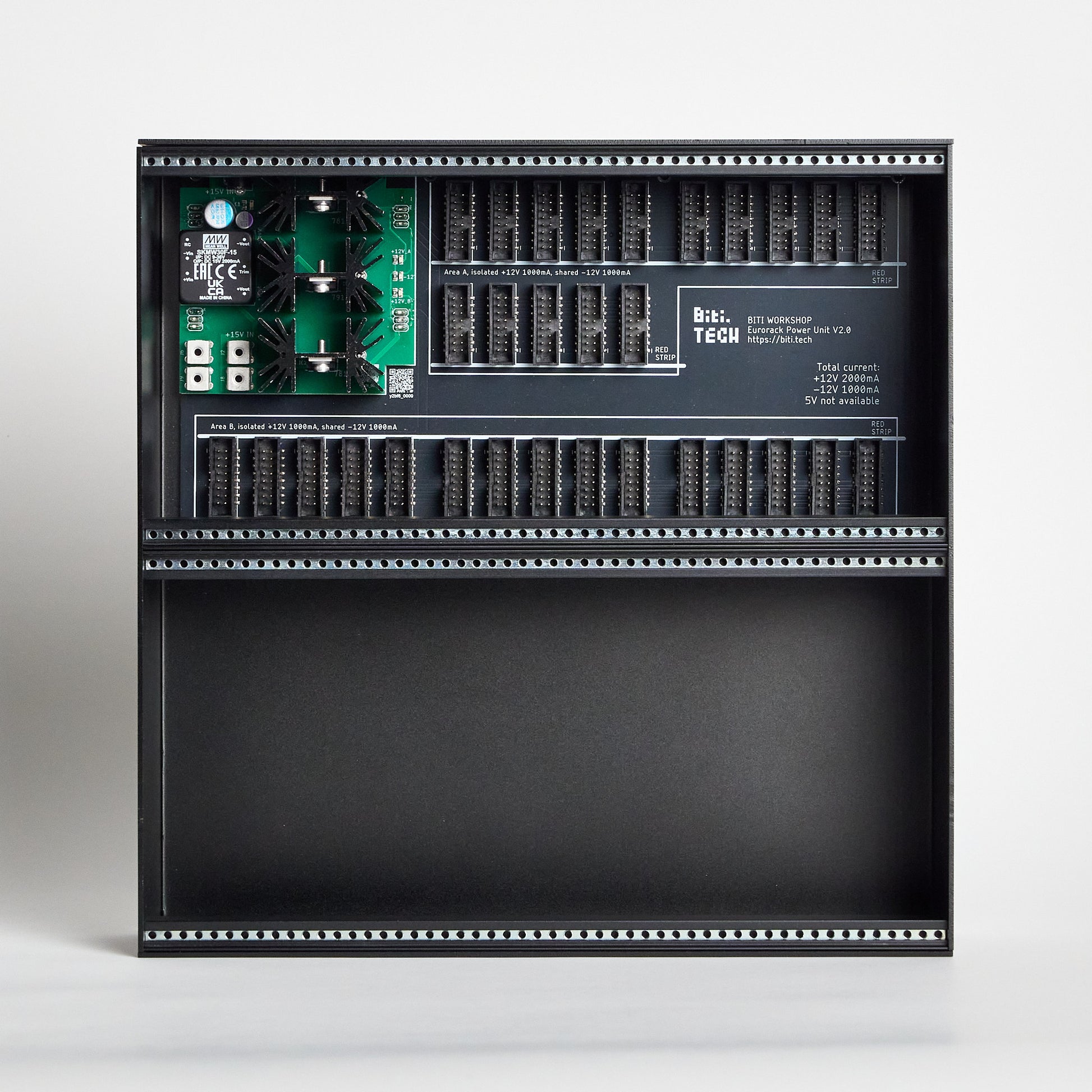

• Fully test power board. The +12V and -12V output ripple is less than 100mV under all load conditions.
• first row min depth 31mm, max depth 52mm. second row depth 64mm.
• Use the same power solution as my tiny_rack project.

Use the included adapter output will be more stable, do not replace it with other models.

Fully test powered by Mi 50w Power Bank 20000mAh using a 15V USB decoy cable, can achieve the same power output quality.

Caution:

1. Don't let the module touch the heat sink, it will short-circuit and burn the module;

POWER SUPPLY BOARD WARRANTY 1 YEAR.
